Alexandroupolis
Latitude / Longitude: 40.839°, 25.895°
Old Commercial Port offering a 180-meter quay which can accommodate vessels with drafts up to 6.80 meters. General cargo and bulk cargo are the main cargoes handled.
Towage: Compulsory for all vessels with GT 1000 and over
Fresh water: Available, from shore
Bunkering: Available only for trucks
Provisions/stores: Available

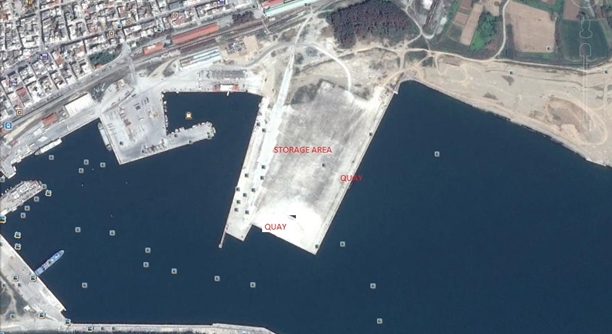

New Commercial (Container) Terminal
Terminal Security: There is an approved Evaluation and Port Facility Security Plan for the Alexandroupolis Port, according to the requirements of the international ISPS Code
Required Pilots i.e. sea, river, harbor: Pilot is available upon request
Vessels accomodated: LOLO (500m East Lo/Lo quay, 180m South Lo/Lo-Ro/Ro quay), RORO, other
Mobile cranes: 1 mobile crane ( ltm 1500 – cap 500tons), available upon request
Forklifts: 1 forklift (5tons), more available upon request
Cargoes:
- Self propelled: All described types of loads can be serviced at the container terminal facilities, provided that the necessary machinery is available (agreement with private companies)
- Non self propelled
- Tracked vehicles
- Containers
- Static breakbulk
- Can tracked vehicles naturally maneuver along the quay and within the terminal grounds
Working Shift Times:
- Standard: Mon-Fri 0800/1800 (subject daylight)
- Weekend: upon request
- Holiday: upon request – not all holidays
- Overtime: 100% on tariff
Storage Space:
- Uncovered: Total surface of concrete floor container terminal, 11.3hectares (open area). Availability depending on the simultaneous use by other uses.
- Access to additional storage space outside the terminal grounds: Access through existing port gates and urban – national road network
- Can artificial / temporary perimeters be erected around a storage area inside the terminal with fencing or empty containers stacked 2 high: Yes
DGD/IMDG: Class 1 and Class 5
- Allowable classes: Loading and unloading of dangerous goods is allowed in the eastern quay of the terminal and is examined on a case-by-case basis and under the conditions of safety measures described in the national legislation. It is not allowed to store explosives in port area, except for the time required to load them.
Port Restrictions
PORT SECTION | MAX LENGTH (m) | OP. DEPTH (m) | |
PASSENGER
TERMINAL |
295 | 6.50 – 9.00 | 6.50 |
TUGBOATS
E.T.C. |
150 | 6.50 – 6.50 | 9.00 |
OLD
COMMERCIAL TERMINAL |
260 | 6.50 | (Lo-Lo) |
OLD
COMMERCIAL TERMINAL |
150 | 6.50 | (Lo-Lo) |
OLD
COMMERCIAL TERMINAL |
260 | 6.50 – 7.00 | (Lo-Lo) |
NEW
COMMERCIAL TERMINAL |
180 | 9.00 | (Ro-Ro, Lo-Lo) |
NEW
COMMERCIAL TERMINAL |
500 | 9.00 | (Lo-Lo) |
Ramps
S/N | PORT SECTION | LENGTH (m) |
R1-R4 | PASSENGER
TERMINAL |
15 |
R5 | TUGBOATS
E.T.C. |
20 |
R6 | TUGBOATS
E.T.C. |
20 |
R7 | FISH PORT | 40 |
R8 | NEW
COMMERCIAL TERMINAL |
20 |
Towage: Compulsory for all vessels with GT 1000 and over
Fresh water: Available, from shore
Bunkering: Available only for trucks
Provisions/stores: Available
Kavala
Latitude / Longitude: 40.952834°, 24.477095°
Roads / Pilot on board: LA 40 56,1 North – LO 24 28,5 East
Port / Alongside: LA 40 56,4 North – LO 24 28,15 East
The commercial port Philippos B’ (Nea Karvali), is located at North Greece, 5 km East of the city of Kavala.
The port of Philippos B’ is directly situated on the North Aegean Sea and hosts one multifunctional single wharf at West with three (3) berths.
Presently only one (1) berth for Loading & Discharging cargoes.
- 1 forklift with lift capacity 40mt
- 1 forklift with lift capacity 3.5mt
- 1 GOTTWALD Mobile Harbour Crane HMK 300 E 100t
Loa: 560 meters pier + 40 meters ramp with safe mean draft 10.80 meters
Fresh Water: Supply available after berthing
Pilot / Tugboat / Garbage: Delivery is compulsory as per port regulations
Bunkering: Availability only for trucks (alongside)
Provisions/Stores: Available

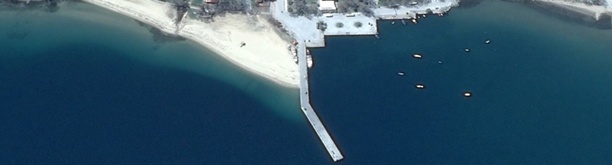

Stavros
Latitude / Longitude: 40.668°, 23.7005°
Stavros is located on the Strymonian Gulf.
Port operates as a commercial port, offering a 215-meter quay, 2 berths, North berth with 108.00 meters length and South with 107.00 meters length. North May accommodate vessels with draft up to 8.00 meters and South up to 5.00 meters. Mainly general cargo handled. No crew changes availability at port.
Pilot Service: Available
Tugboat Service: N/A

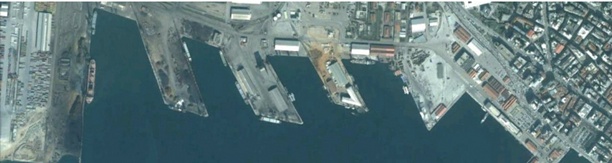

Thessaloniki
Latitude / Longitude: 40.63692°, 22.91859°
CRUDE OIL SEA BERTH
Positioned at 40° 36.9 N – 22° 53.9 E
Max summer dwt: 160 KDWT Fully loaded
Max Length (LOA): 340 Meters
Min Length (LOA): 240 Meters
Maximum draft: 57 ft 6 inches (17.53 meters)
The vessel should be equipped with six (6) wires (without tails) having diameter 36-40 mm and length not less than 240 meters ,mounted on winches.
HELPE PRODUCTS SEA BERTH
Positioned at 40° 37.8 N – 22° 53.6 E
Max summer dwt: 50 KDWT
Max Length (LOA): 240 meters
Min Length (LOA): 170 meters
Maximum draft: 42 ft (12.8 meters)
The vessel should be equipped with two (2) wires (without tails) and 9 ropes having diameter 32-36mm and length not less than 240 meters mounted on winches.
HELPE BREASTING ISLAND
Positioned at 40° 38.1 N – 22° 53.4 E
The Breasting Island consists of a main concrete platform sized 46 meters X 18 meters.
There are 2 berths one at each side of the concrete platform, the NW side (called Inshore) and SE side (called Offshore).
Max summer dwt: 6000 INSIDE SHORE – 22000 OFFSHORE SHORE
Max Length (LOA): 110 meters INSIDE SHORE – 170 meters OFFSHORE SHORE
Maximum draft: 29 ft (8.84 meters) INSIDE SHORE – 32 ft (9.75 meters) OFFSHORE SHORE
MAMIDOIL JETOIL INNER SEA BERTH (OLD)
Positioned at 40° 39.0 N – 22° 53.1 E
Max Length (LOA): 200 meters
Maximum draft: 32.05 ft (9.77 meters)
The vessel should be equipped with six or eight nylon ropes with length no less than 150 meters.
MAMIDOIL JETOIL OUTER SEA BERTH (NEW)
Positioned at 40° 37.75 N – 22° 53.22 E
Max Length (LOA): 290 meters
Min Length (LOA): 130 meters
Maximum draft: 46.05 ft (14.03 meters)
The vessel should be equipped with twelve nylon ropes with length no less than 180 meters.
YACHTS
Thessaloniki Commercial Port
Quay No.3: Length 200 meters, Draft 7 meters
Fresh water: Available
Waste disposal: Available
Distance to airport about 20 km
Downtown is in a walking distance.All services available.
Suitable for Megayachts.
Thessaloniki Marina (Aretsou)
Positioned at 40° 34.50 N – 22° 56.50 E
Max Length (LOA): 40 meters
Max Draft: 3 meters
Fresh water: Available
Electricity: Available
Waste disposal: Available
Distance to Thessaloniki International Airport is about 7 km.
Distance to downtown is about 7 km.
Marina Porto Carras
Positioned at 40° 04.08 N – 23° 47.05 E
Max Length (LOA): 55 meters
Max Draft: 5.50 meters
Fresh water: Available
Electricity: Available
Bunker: Available
Waste disposal: Available
Distance to Thessaloniki International Airport is about 120 km.
Marina Sani Resort
Positioned at 40° 05.846 N – 23° 18.374 E
Max Length (LOA): 26 meters
Max Draft: 3 meters
Fresh water: Available
Electricity: Available
Bunker: Available
Waste disposal: Available
Distance to Thessaloniki International Airport is abt 70 km.
CONTAINER VESSELS
Thessaloniki Container Terminal
Quay No.26 – Length: 550 meters, Width: 340 meters, Max Depth: 11.20 meters
The quay is located in the western part of pier 6.
REEFER VESSELS
Thessaloniki Commercial Port
Suitable quays for berth are the following:
Quay No. 15: Length 175 meters, Depth 9.00 meters
Quay No. 23: Length 184 meters, Depth 8.10 meters
Private fridge warehouse facilities close to the pier.
RORO VESSELS
Thessaloniki Commercial Port
Suitable quays for berth are the following:
Quay No.21: Length 185 meters, Depth 11.20 meters
Quay No.23: Length 184 meters, Depth 8.10 meters
Both mainly used for Med Moor.
BREAKBULK VESSELS
Thessaloniki Commercial Port
Suitable quays for berth are the following:
Quay No.17: Length 190 meters, Depth 10.30 meters, 2 cranes Ardelt Kranitch X 112 Tons at 11 mts
Quay No.18: Length 320 meters, Depth 9.10 meters, 2 cranes X 6 mts capacity
Quay No.20: Length 350 meters, Depth 8.90 meters, 1 crane X 15 mts and 2 X 25 mts capacity>
Quay No.21: Length 185 meters, Depth 11.20 meters, no cranes
Quay No.22: Length 370 meters, Depth 8.50 meters, 3 cranes X 10 mts and 1 X 25 mts capacity
Quay No.23: Length 184 meters, Depth 8.10 meters, 3 cranes X 6 mts capacity
Quay No.24: Length 635 meters, Depth 11.20 meters, 2 cranes X 35 mts and 4 X 40 mts
GENERAL CARGO
Thessaloniki Commercial Port
Suitable quays for berth are the following:
Quay No.15: Length: 175 meters, Depth: 9.00 meters, 2 shore cranes X 3 mts capacity
Quay No.17: Length 190 meters, Depth 10.30 meters, 2 cranes Ardelt Kranitch X 112 Tons at 11 mts
Quay No.18: Length 320 meters, Depth 9.10 meters, 2 cranes X 6 mts capacity
Quay No.20: Length 350 meters, Depth 8.90 meters, 1 crane X 15 mts and 2 X 25 mts capacity
Quay No.21: Length 185 meters, Depth 11.20 meters, no cranes
Quay No.22: Length 370 meters, Depth 8.50 meters, 3 cranes X 10 mts and 1 X 25 mts capacity
Quay No.23: Length 184 meters, Depth 8.10 meters, 3 cranes X 6 mts capacity
Quay No.24: Length 635 meters, Depth 11.20 meters, 2 cranes X 35 mts and 4 X 40 mts capacity
HEAVY LIFT VESSELS
Thessaloniki Commercial Port
Suitable quays for berth are the following:
Quay No.17: Length 190 meters, Depth 10.30 meters, 2 cranes Ardelt Kranitch X 112 Tons at 11 mts
Quay No.18: Length 320 meters, Depth 9.10 meters, 2 cranes X 6 mts capacity
Quay No.20: Length 350 meters, Depth 8.90 meters, 1 crane X 15 mts and 2 X 25 mts capacity
Quay No.21: Length 185 meters, Depth 11.20 meters, no cranes
Quay No.22: Length 370 meters, Depth 8.50 meters, 3 cranes X 10 mts and 1 X 25 mts capacity
Quay No.23: Length 184 meters, Depth 8.10 meters, 3 cranes X 6 mts capacity
Quay No.24: Length 635 meters, Depth 11.20 meters, 2 cranes X 35 mts and 4 X 40 mts capacity
NAVAL SHIPS
Thessaloniki Commercial Port
Suitable quays for berth are the following:
Quay No.2: Length 90 meters, Depth 7 meters
Quay No.3: Length 200 meters, Depth 7 meters
Quay No.4,5,6,7: Length 400 meters, Depth 7 meters

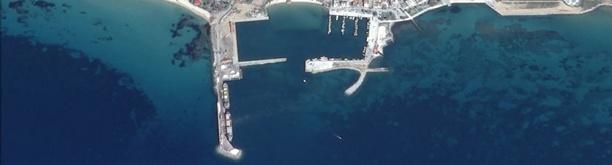

Nea Moudania
Latitude / Longitude: 40.236955°, 23.281635°
Located on the Thermaikos Gulf.
Port functions as an adjunct of Thessaloniki port. Dry cargo and bulk cargo mainly served at the port. The key length is 210 meters and max draught of 5.70 meters forward and 7.50 meters aft. The port can serve up to two vessels at the same time. Crew changes availabilty.
Tugboat Service: Available
Bunkering: Available
Fresh water: Available
Provisions: Available

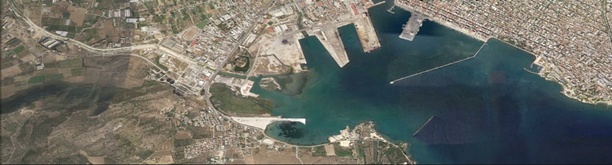

Volos
Latitude / Longitude: 34.65841°, 33.0271°
Volos port is located on the head of the Gulf of Pagasitikos on the eastern Greek mainland. It’s anchorage area is situated about 2 km from the port entrance. Two jetties can accommodate commercial vessels.
Jetty B
It is the jetty located in the middle of the port. East side with length 400m end max draft 9.50m. It is provided with two shore cranes: Rocas No 8 capacity 25 metric tons, and Rocas No 9 capacity 40 metric tons, which move up to rails for loading and unloading. West side with length 300m and max draft 9.20 m used for cruise vessels, and when it is free used for loading and unloading by using external mobile crane or vessel’s cranes.
It is located east of jetty B. East side its length is 300m and max draft 9.50m. Jetty A is used for loading and unloading by using external mobile crane or vessel’s cranes. At the jetty head length 150m and max draft 9.50m. There are 2 shore cranes which move up to rails, capacity 6 tons each. West side with length 300m and max draft 9.50m., used for unloading steel scraps.
Towage: Compulsory for all vessels with GT 1000 and over
Fresh water: Available, from shore
Bunkering: Available only for trucks
Provisions/stores: Available
Stylis
Latitude / Longitude: 38.90723°, 22.616655°
Stylida or Stylis Port is situated on the north side of Maliakos Kolpos (Gulf).
A dredged channel of about half a mile leads to the basis of the port. The channel is marked at the outer end by a pair of light buoys and just before entering the basin by flashing beacons.The maximum draft for entering the channel is 5.80 meters.
Stylida Port has one main commercial pier of a total lengh 200 meters with max draft 5.80 meters.

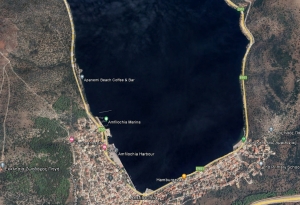

Amfilochia
Latitude / Longitude: 38.5260°, 21.1000°
Amfilochia port is located in the SE corner of the Amvrakikos Gulf, in Western Greece. Amfilochia is sometimes used for the import of grain. The Port has the only pier of 220m. Maximum safety draft 7m.
Pilot Service: Available
Tug Service: upon request, subject to vessel size
Fresh water/Provisions: Available

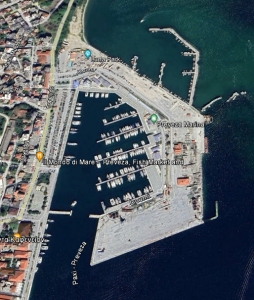

Preveza
Latitude / Longitude: 38.558° , 20.428°
Preveza port is close to the seaward entrance of the Amvrakikos Gulf in Western Greece, facing the Ionian Sea. The port has 1 piers with length 250m. Maximum safety draft 9.4m.
Pilot Service: Available
Tug Service: upon request, subject to vesssel size
Fresh water/Provisions: Available

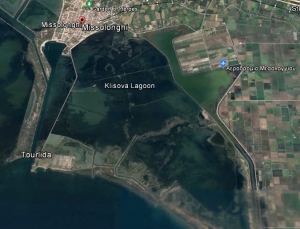

Messolonghi
Latitude / Longitude: 38.1853°,21.2459°
Messolonghi port is located in the centre of a protected lagoon area.
Length of pier 400m. Maximun draft is 6.10m, draft is slightly affected also by tides, so safety draft should be considered around 5.50m.
Pilot Service: Available
Tug Service: upon request, subject to vessel size
Fresh water/Provisions: Available

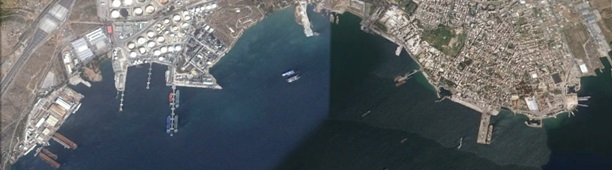

Eleusis
Latitude / Longitude: 38.03676°, 23.53047°
Eleusis is located on the Saronikos Gulf to the southeast of the mainland, 24 km from Piraeus.
The port operates as a commercial port only, offering a 300-meter quay with 80 meters width which can accommodate vessels with drafts ranging from 5.50 to 8.00 meters. General cargo and scrap iron are the main cargoes handled.
All vessels proceeding to Eleusis Bay have to pass via the Strait of Salamis Channel (Atalante Channel), in daylight hours only, with maximum draught of 10.90 meters, or via the Poros Megaron Channel, with maximum draught of 7.9 meters. In both channels a pilot is compulsory. In addition, tug escorts are compulsory for vessels over 120 meters LOA transiting the Strait of Salamis, with ship lines being used. Under special circumstances and by prior arrangement with the agent and authorities, transit is possible at night – but is very difficult to get permission.

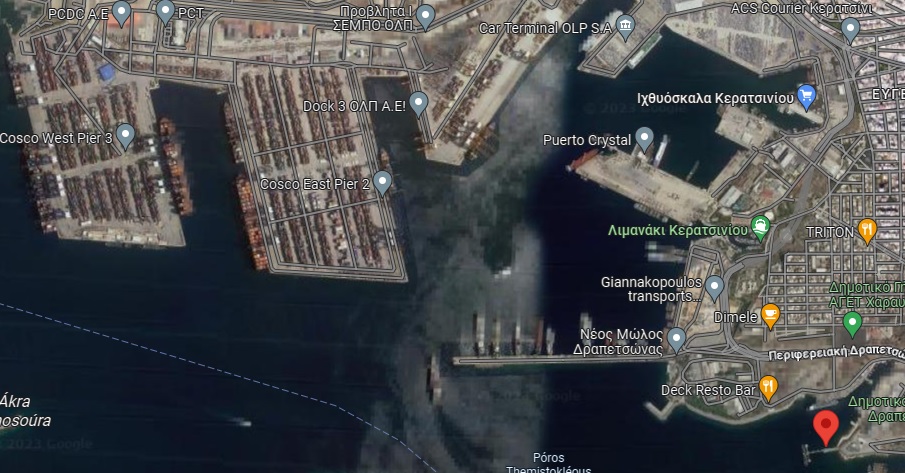

Piraeus
Latitude / Longitude: 37.94606°, 23.61377°
Natural port of Athens and Greece’s main gateway.
Loch: No
Air draft: Unlimited
Tide range, salt or fresh water, density: Tide ±0.5m, Salt water, 6hrs high, 6hrs low
Channel water draft: 25.5 meters
Tugboat: Compulsory – GRT >1000, 1 TUG COMPULSORY
UN/LOCODE: GRPIR
Local currency: EURO €
Harbour Master office contact (VHF and 24/7 tel): 13
Pilot service: company(ies) and VHF: 12
Security level and contact of PFSO: S1
Read More…
G2 Terminal – Piraeus Car Terminal
Surface area: 145000 m2
Length of platform: 1167 m
Depth: 10-11 m
Berthing areas: 4 slots
Vehicle Storage capacity: 6.700car spots
Activities:
- Loading / unloading of cars, H&H and general cargo
- Storage until the pick up or loading of the cars
- Shifting of cargo on board and through the compound
- Selection and segregation of specific VINs at the terminal
- Technical support to cargo (battery charge, flat tyres etc.)
Equipment overview
Following the audit that took place in October 2020 by GEFCO 4PL regarding the quality standards & requirements for OPEL/VAUXHALL vehicles, Piraeus Car Terminal’s compound achieved a level of “Excellent” (96%).
Lavrion
Latitude / Longitude: 37.70966°, 24.062°
The commercial port has about 680 meters of quays, of which only 300 meters are usually available daily. The commercial quays accept vessels of no more than 120-140 meters LOA and max draught of 8.50 meters. They are mostly used for loading/discharging general cargo, containers (feeder ships) and various non-hazardous dry bulks.
Iraklion
Latitude / Longitude: 35.3475°, 25.1478°
Port has 5 quays with total of 4000 meters length and up to12 meters depth. Commercial Port has 3 quays which can serve the movement of any general or bulk cargo ships (& with pumps or pipes) and containers.
Quay No 3 with total length 959.00 meters and max draft 8.50 meters.
Quays No 4-5 with total length 851.00 meters and max draft 12.00 meters.
Quay No 6 with total length 380.00 meters and max draft 8.50 meters.
Simultaneously, it has an outdoor storage area for the deposition / storage containers, general cargo and covered warehouse packed (pallets, cartons, wooden boxes, packages, bags, etc.) loads. Due to the Customs Service operating within the port, there is the possibility for movement and storage of imported / exported goods.
Pilot Service: Available
Tug Service: Compulsory
Fresh water/Provisions: Available
Port has facilities for waste disposals such as garbage & liquid wastes.
Limassol
Latitude / Longitude: 34.646967°, 33.012031°
New Commercial port is under development/construction.
Old Commercial Port offering a 180-meter quay which can accommodate vessels with drafts up to 6.80 meters. General cargo and bulk cargo are the main cargoes handled.
Towage: Compulsory for all vessels with GT 1000 and over
Fresh water: Available, from shore
Bunkering: Available only for trucks
Provisions/stores: Available
